  Cover  pg 2 October-1892  Nut tapping Machine.
  A JOURNAL FOR MACHINISTS, ENGINEERS, FOUNDERS, BOILER MAKERS, PATTERN MAKERS AND BLACKSMITHS.

VOL. 15, NO. 43. WEEKLY.
NEW YORK, THURSDAY, OCTOBER 27, 1892.
83.00 per Are SINGLE COPIES 6 CENT!
COPYRIGHT 1892, BY AMERICAN MACHINIST PUBLISHING COMPANY.
For Sale Everywhere by Newsdealers.

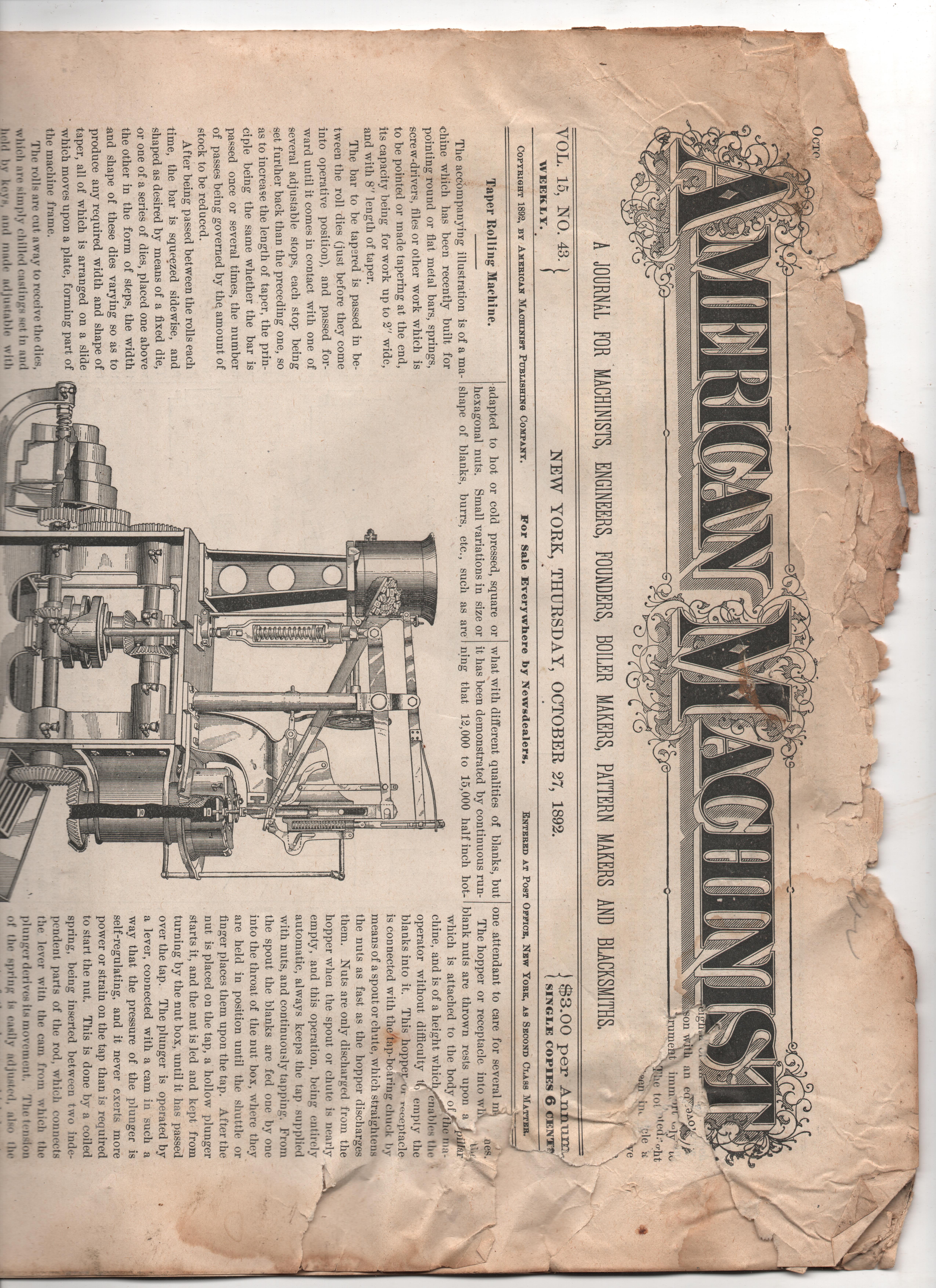

Taper Rolling Machine.
The accompanying illustration is of a ma-chine which has been recently built for pointing round or flat metal bars, springs, screw-drivers, files or other work which is to be pointed or made tapering at the end, its capacity being for work up to 2" wide, and with 8" length of taper. The bar to be tapered is passed in be-tween the roll dies (just before they come into operative position), and passed for-ward until it comes in contact with one of several adjustable stops, each stop being set further back than the preceding one, so as to increase the length of taper, the prin-ciple being the same whether the bar is passed once or several times, the number of passes being governed by the amount of stock to be reduced. After being passed between the rolls each time, the bar is squeezed sidewise, and shaped as desired by means of a fixed die, or one of a series of dies, placed one above the other in the form of steps, the width and shape of these dies varying so as to produce any required width and shape of taper, all of which is arranged on a slide which moves upon a plate, forming part of the machine frame. The rolls are cut 11 way to receive the (tics, Jiro simply cl►i111.(1 (listi►gs s1.1 in (Ind 11(1(1 by Ito's, Uhl! 11►1►114' II
dapted to hot or cold pressed, square or hexagonal nuts. Small variations in size or shape of blanks, burrs, etc., such as are
what with different qualities of blanks, but it has been demonstrated by continuous run-ning that 12,000 to 15,000 half inch hot-one attendant to care for several mi) nes The hopper or receptacle into wit\ tie: blank nuts are thrown rests upon a ipiimr blanks into it. This hopp operator without diculty chine, and is of a height which which is attached to the body of the, ) empty the q,, ( vocbeptack enablies ffi  is connected with theisap-bearing chuck by means of a spout or chute, which straightens the nuts as fast as the hopper discharges them. Nuts are only discharged from the hopper when the spout or chute is nearly empty, and this operation, being entirely automatic, always keeps the tap supplied with nuts, and continuously tapping. From the spout the blanks are fed one by one into the throat of the nut box, where they are held in position until the shuttle or finger places them upon the tap. After the nut is placed on the tap, a hollow plunger starts it, and the nut is led and kept from turning by the nut box, until it has passed over the tap. The plunger is operated by a lever, connected with a cam in such a way that the pressure of the plunger is self-regulating, and it never exerts more power or strain on the tap than is required to start the nut. This is done by a coiled spring, being inserted between two inde-pendent parts of the rod, which connects I he lever with the caw from which the phow:cr derives Its inovcmen1 . The tcnsioti of 1 Iii spring Is easily m01141441, nko I he

***********************************************************

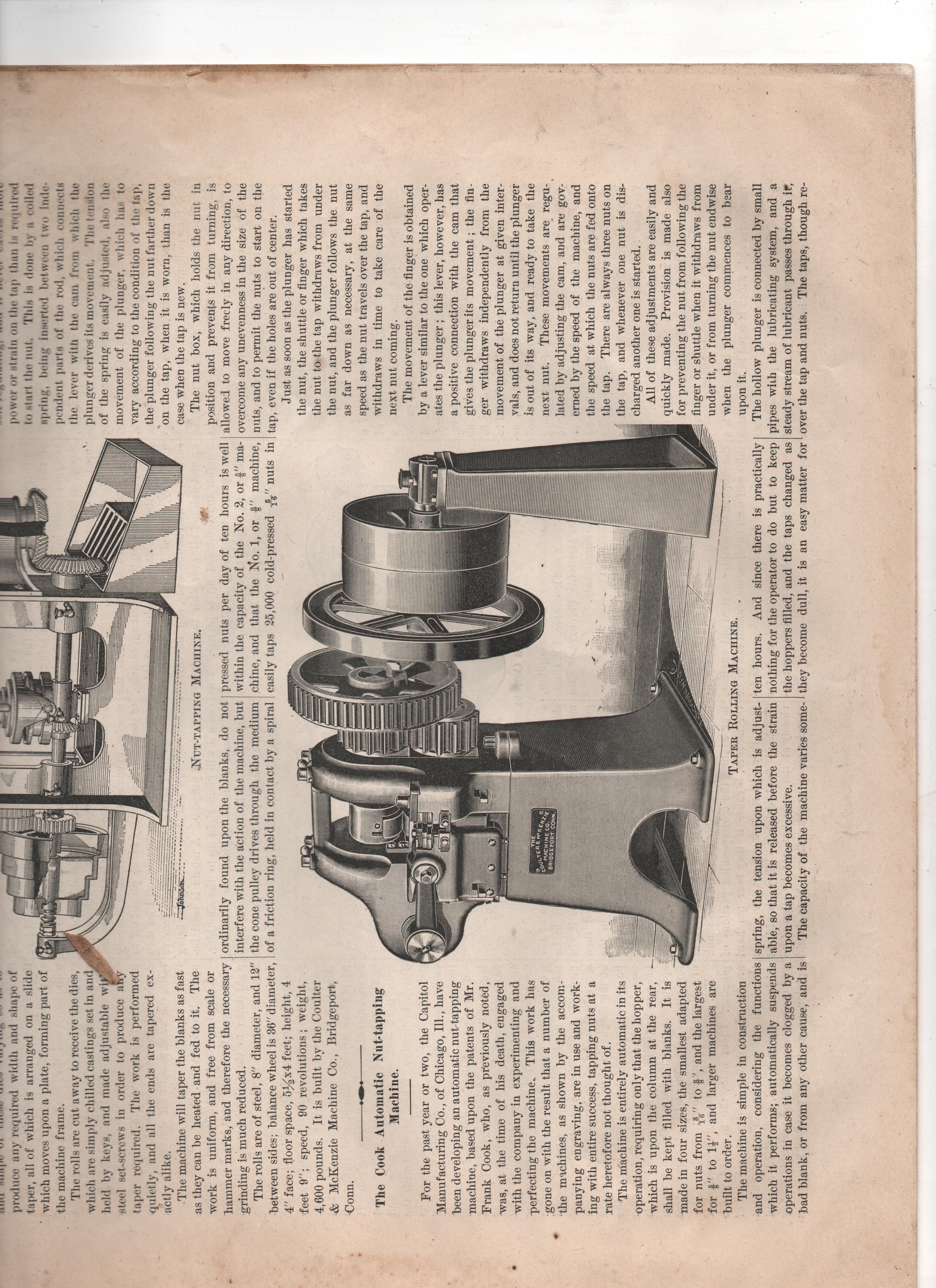

NUT-TAPPING MACHINE.  The Cook Automatic Nut-tapping Machine.
For the past year or two, the Capitol Manufacturing Co., of Chicago, Ill., have been developing an automatic nut-tapping machine, based upon the patents of Mr. Frank Cook, who, as previously noted, was, at the time of his death, engaged with the company in experimenting and -perfecting the machine.. This work has gone on with the result that a number of the machines, as shown by the accom-panying engraving, are in use and work-ing with entire success, tapping nuts at a rate heretofore not thought of. The machine is entirely automatic in its operation, requiring only that the hopper, which is upon the column at the rear, shall be kept filled with blanks. It is made in four sizes, the smallest adapted for nuts from TV to #', and the largest for r to 1-i", and larger machines are built to order. The machine is simple in construction and operation, considering the functions which it performs; automatically suspends operations in case it becomes clogged by a had blank, or from any other cause, and is pressed nuts per day of ten hours is well within the capacity of the No. 2, or r ma-chine, and that the No. 1, or i" machine, easily taps 25,000 cold-pressed A" nuts in
 This is done  wiuth a  coilcd spring, being inserted ►etwevn two1a parts of the rod, which connects the lever with 1 he rani Iron) which I he plunger derives ifs movement. The ten ton of the spring is easily adjusted, also Ile movement of the plunger, which has to vary according to the condition of the tap, the plunger following the nut farther down on the tap, when it is worn, than is the case when the tap is new. The nut box, which holds the nut in position and prevents it from turning, is allowed to move freely in any direction, to overcome any unevenness in the size of the nuts, and to permit the nuts to start on the tap, even if the holes are out of center. Just as soon as the plunger has started the nut, the shuttle or finger which takes the nut to the tap withdraws from under the nut, and the plunger follows the nut as far down as necessary, at the same speed as the nut travels over the tap, and withdraws in time to take care of the next nut coming. The movement of the finger is obtained by a lever similar to the one which oper-ates the plunger ; this lever, however, has a positive connection with the cam that gives the plunger its movement ; the fin-ger withdraws independently from the movement of the plunger at given inter-vals, and does not return until the plunger is out of its way, and ready to take the next nut. These movements are regu-lated by adjusting the cam, and are gov-erned by the speed of the machine, and the speed at which the nuts are fed onto the tap. There are always three nuts on the tap, and whenever one nut is dis-charged another one is started. All of these adjustments are easily and quickly made. Provision is made also for preventing the nut from following the finger or shuttle when it withdraws fromidth Mid shape of taper, all of which is arranged on a slide which moves upon a plate, forming part of the machine frame. The rolls are cut away to receive the dies, which are simply chilled castings set in and held by keys, and made adjustable w steel set-screws ill Order to prod two U y taper required. The work is performed quietly, and all the ends are tapered ex-actly alike. The machine will taper the blanks as fast as they can be heated and fed to it. The work is uniform, and free from scale or hammer marks, and therefore the necessary ordinarily found upon the blanks, do not -grinding is much reduced. interfere with the action of the machine, but The rolls are of steel, 8" diameter, and 12" the cone pulley drives through the medium between sides; balance wheel is 36" diameter, of a friction ring, held in contact by a spiral 4" face; floor space, 51.x4 feet; height, 4 feet 9"; speed, 90 revolutions ; weight, 4,600 pounds. It is built by the Coulter ,Szi McKenzie Machine Co., Bridgeport, Conn.  under it, or from turning the nut endwise when the plunger commences to bear upon it. The hollow plunger is connected by small pipes with the lubricating system, and a steady stream of lubricant passes through over the tap and nuts. The taps, though re-

H44411111111111111
TAPER ROLLING MACHINE.
spring, the tension upon which is adjust-able, so that it is released before the strain upon a tap becomes excessive. The capacity of the machine varies some-
ten hours. And since there is practically nothing for the operator to do but to keep the hoppers filled, and the taps changed as they become dull, it is an easy matter for

Cogging wheel teeth

Reolving at a very high rate of speed, and continuously at work, are kept perfectly cool, and the nuts are discharged without percepti-ble heat. All dirt and chips are washed euse the least trouble. revolving chuck, part upwards; the , drops from the ap, and is allowed to j shank, through the chuck, IC Aping the tap. Thus no time is Most I y ,moving the nuts from the tap, and this, ogether with the great speed at which 2 the t can be run, gives the large capacity. Th tap-carrying chuck is made of steel, alk and c nsists of eight parts only, none of g=vhich are delicate, liable to break or subject CMo much wear; it is very simple, strong, and jni -indestructible. The tap is held in two in the shank, as is shown by the sing cut. The tap holders are wing Cra pht eat and open and close automatically, , aetuatetbY cam rollers, operating upon the outside sui44, ces of the winged tap holders or jaws, which' are shaped and act as cams. T111.1.0 are EIVO , pairs of these tap holders or jaws, one pair -pined* above the other; and while the upper pair is open, to allow the nut to pass, the tap is held by the lower pair, and o'•r rersa. This differential movement is scrolled by running the outside casing of the chuck, which carries the upper jaws and their cam rollers, at a different speed from the stem or body of the chuck, which carries the lower jaws and their cam rollers. The illustration shows plainly the combination of gearing, etc., which give this movement. The lubricant is furnished by a rotary pump connected with the lubricating tank. Two tanks are used ; one from which the pump draws the supply, and the other for the return Of it, which latter tank also acts as a settling tank in which chips and sediment accumuhite ; no lubricant goes to waste. Alter the nuts leave the tap they drop into an iron pan with a perforated raise boa tom, cov-ering a space to receive the lubricant which drains front Illy nuts. This drainage chamber is connected with the settling tank, and the lubricant, drained from, the wits is used and the 1111k left, dry in the iron pan. '1'11e lubricant used is cheap and easily made. 'I he chuck is surrounded by a steel Iron casilw, to prevent Hie lubricant From being 1hrowti, The laps tried In Iliew while lay 111g HiNi•hil P.Ive than ordinary law,. The ourelnoie of  other, and with a fair bearing, notwithstand-ing any small variations of diameter in shafting which may occur. _ • With this form of coupling, such angles can be used for the dovetails that the clamps release themselves when the set-screws are slacked, and the coupling can then be easily removed. And it is to be noted that there are no parts of the coupling which must be got at from the ends in either tightening or loosening it—the set screws being always accessible in almost any conceivable situa-tion in which a coupling may be placed. The beveled surfaces of the clamps and of the

-1?

IIA
Fig. 41.
Fig. 40.
.Fig. 44.
k ;gII ■ a , • ; • ; •
Fig. 43.


DRIVING IN.
BY JOSEPH HORNER.

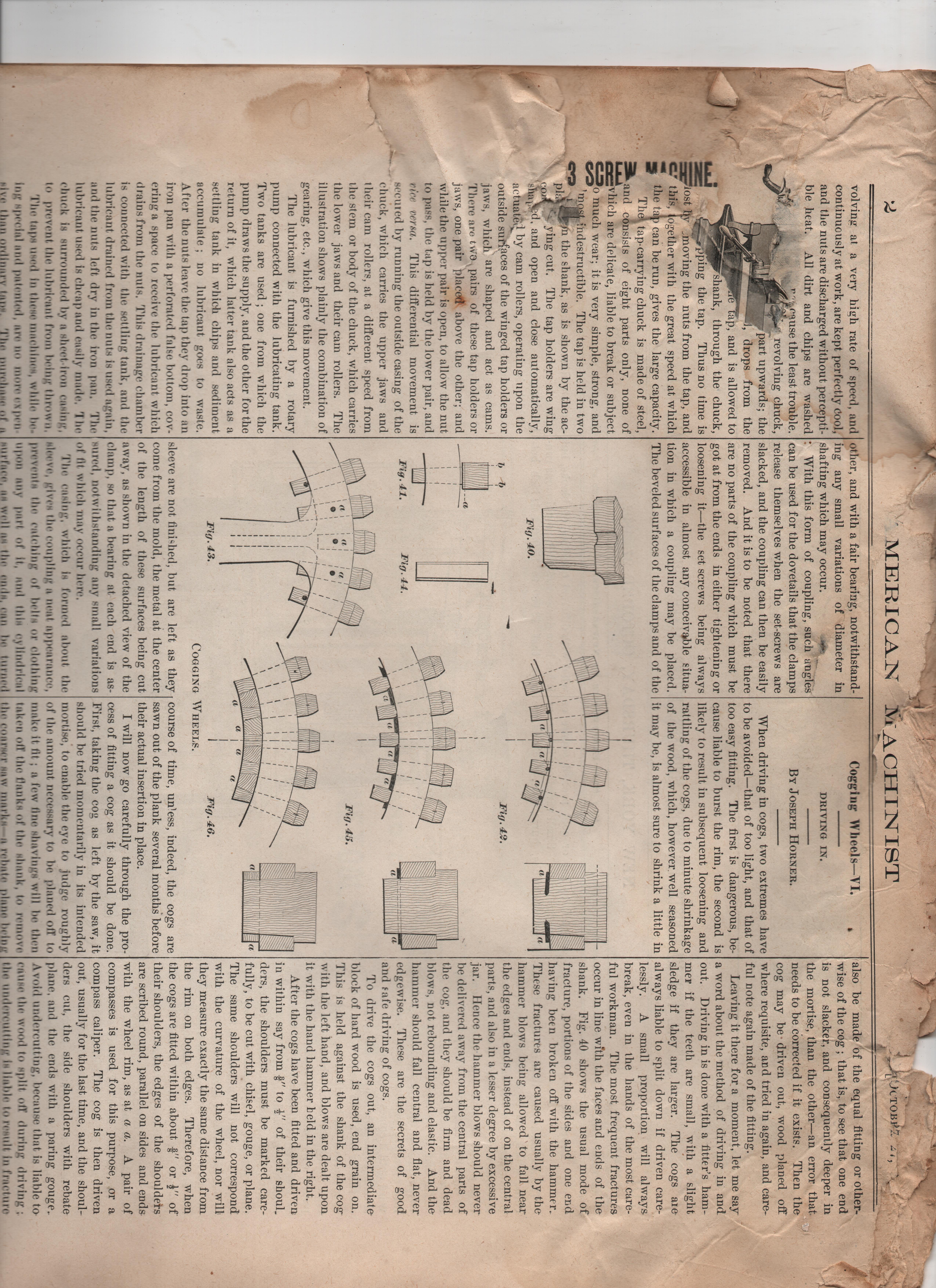

When driving in cogs, two extremes have to be avoided—that of too light, and that of too easy fitting. The first is dangerous, be-cause liable to burst the rim, the second is likely to result in subsequent loosening and rattling of the cogs, due to minute shrinkage of the wood, which, however well seasoned it may be, is almost sure to shrink a little in a

11,11i \ vfilm
Fig. 42.
6* ' , ian "NU / • att lftFr ■
a in a
43.
El ito loge (al /11 I ; I I

COGGING
sleeve are not finished, but are left as they come from the mold, the metal at the center of the length of these surfaces being cut away, as shown in the detached view of the clump, mo that a bearing at each end is as-sured, not withstanding any small variations ()I. it which may occur here. The casing, v■,hich formed about the a', givem the c",I1►1iiig I1. !will 'appearance, Pi. H1/.1 Hie catching of bells or clothing iinv plat I or 11, and 1111,I e■lindrleal oil' IA+ eauM well IN 1111' 11111 1►1' 111111111
Pig. 46.
-WHEELS.

course of time, unless, indeed, the cogs are sawn out of the plank several months before their actual insertion in place. I will now go carefully through the pro-cess of fitting a cog as it should be done. First, taking the cog as left by the saw, it should be tried momentarily in its intended mortise; to enable the eye to .itidge roughly of the amount necessary to be ►honed call to make it III ; It. few tine shavIngm will be then 1111(1.11 4,1r the 11111Iks of the 1.111111111(. 11) 1c1114)V, Illv NI1W 1►1111i41

also be made of the equal fitting or other-wise of the cog ; that is, to see that one end is not slacker, and consequently deeper in the mortise, than the other—an error that needs to be corrected if it exists. Then the cog may be driven out, wood planed off where requisite, and tried in again, and care-ful note again made of the fitting. Leaving it there for a moment, let me say-a word about the method of driving in and out. Driving in is done with a fitter's ham-mer if the teeth are small, with a slight sledge if they are larger. The cogs ale always liable to split down if driven care-lessly. A small proportion will always, break, even in the hands of the most care-ful workman. The most frequent fractures occur in line with the faces and ends of the shank. Fig. 40 shows the usual mode of fracture, portions of the sides and one end having been broken off with the hammer. These fractures are caused usually by the hammer blows being allowed to fall near the edges and ends, instead of on the central parts, and also in a lesser degree by excessive jar. hence the hammer blows should never be delivered away from the central parts of the cog, and they should be firm and dead blows, not rebounding and elastic. And the hammer should fall central and flat, never edgewise. These are the secrets of good and F a re shriving of cogs. To drive the cogs out, an intermediate' block of hard wood is used, end grain on. This is held against the shank of the cog with the left hand, and blows are dealt upon it with the hand hammer held in the right. After the cogs have been fitted and driven, in within say from -a" to 4--" of their shoul_ ders, the shoulders must be marked care-fully, to be cut with chisel, gouge, or plane. The same shoulders will not correspond with the curvature of the wheel, nor will they measure exactly the same distance from the rim on both edges. Therefore, when the cogs are fitted within about -11" or i" of their shoulders, the edges of the shouldeis are scribed round, parallel on sides and ends with the wheel rim, as at a a. A pair of compasses is used for this purpose, or a compass caliper. The cog is then driven out, usually for the last time, and the shoul-ders cut, the side shoulders with rebate plane, and the ends wills It paring gouge.. Avoid undereulling, because that is liable to rause the %%ood to spliI all during (hiving ; the m111(.1.410111114 Is liable to result in Priori tare

Hie lubricant From being 1hrowti, The laps tried In Iliew while lay 111g HiNi•hil P.Ive than ordinary law,. The ourelnoie of
MERICAN SIA CITINIST
other, and with a fair bearing, notwithstand-ing any small variations of diameter in shafting which may occur. _ • With this form of coupling, such angles can be used for the dovetails that the clamps release themselves when the set-screws are slacked, and the coupling can then be easily removed. And it is to be noted that there are no parts of the coupling which must be got at from the ends in either tightening or loosening it—the set screws being always accessible in almost any conceivable situa-tion in which a coupling may be placed. The beveled surfaces of the clamps and of the

-1?

IIA
Fig. 41.
Fig. 40.
.Fig. 44.
k ;gII ■ a , • ; • ; •
Fig. 43.


DRIVING IN.
BY JOSEPH HORNER.
When driving in cogs, two extremes have to be avoided—that of too light, and that of too easy fitting. The first is dangerous, be-cause liable to burst the rim, the second is likely to result in subsequent loosening and rattling of the cogs, due to minute shrinkage of the wood, which, however well seasoned it may be, is almost sure to shrink a little in a

11,11i \ vfilm
Fig. 42.
6* ' , ian "NU / • att lftFr ■
a in a
43.
El ito loge (al /11 I ; I I

COGGING
sleeve are not finished, but are left as they come from the mold, the metal at the center of the length of these surfaces being cut away, as shown in the detached view of the clump, mo that a bearing at each end is as-sured, not withstanding any small variations ()I. it which may occur here. The casing, v■,hich formed about the a', givem the c",I1►1iiig I1. !will 'appearance, Pi. H1/.1 Hie catching of bells or clothing iinv plat I or 11, and 1111,I e■lindrleal oil' IA+ eauM well IN 1111' 11111 1►1' 111111111
Pig. 46.
-WHEELS.

course of time, unless, indeed, the cogs are sawn out of the plank several months before their actual insertion in place. I will now go carefully through the pro-cess of fitting a cog as it should be done. First, taking the cog as left by the saw, it should be tried momentarily in its intended mortise; to enable the eye to .itidge roughly of the amount necessary to be ►honed call to make it III ; It. few tine shavIngm will be then 1111(1.11 4,1r the 11111Iks of the 1.111111111(. 11) 1c1114)V, Illv NI1W 1►1111i41

also be made of the equal fitting or other-wise of the cog ; that is, to see that one end is not slacker, and consequently deeper in the mortise, than the other—an error that needs to be corrected if it exists. Then the cog may be driven out, wood planed off where requisite, and tried in again, and care-ful note again made of the fitting. Leaving it there for a moment, let me say-a word about the method of driving in and out. Driving in is done with a fitter's ham-mer if the teeth are small, with a slight sledge if they are larger. The cogs ale always liable to split down if driven care-lessly. A small proportion will always, break, even in the hands of the most care-ful workman. The most frequent fractures occur in line with the faces and ends of the shank. Fig. 40 shows the usual mode of fracture, portions of the sides and one end having been broken off with the hammer. These fractures are caused usually by the hammer blows being allowed to fall near the edges and ends, instead of on the central parts, and also in a lesser degree by excessive jar. hence the hammer blows should never be delivered away from the central parts of the cog, and they should be firm and dead blows, not rebounding and elastic. And the hammer should fall central and flat, never edgewise. These are the secrets of good and F a re shriving of cogs. To drive the cogs out, an intermediate' block of hard wood is used, end grain on. This is held against the shank of the cog with the left hand, and blows are dealt upon it with the hand hammer held in the right. After the cogs have been fitted and driven, in within say from -a" to 4--" of their shoul_ ders, the shoulders must be marked care-fully, to be cut with chisel, gouge, or plane. The same shoulders will not correspond with the curvature of the wheel, nor will they measure exactly the same distance from the rim on both edges. Therefore, when the cogs are fitted within about -11" or i" of their shoulders, the edges of the shouldeis are scribed round, parallel on sides and ends with the wheel rim, as at a a. A pair of compasses is used for this purpose, or a compass caliper. The cog is then driven out, usually for the last time, and the shoul-ders cut, the side shoulders with rebate plane, and the ends wills It paring gouge.. Avoid undereulling, because that is liable to rause the %%ood to spliI all during (hiving ; the m111(.1.410111114 Is liable to result in Priori tare


(Editorial Correspondence ) Just previous to our arrival at San Fran-cisco Secretary Hutton passed through the train and announced that the program of enter-tainment as laid out for us by our California
and including the presentation of Mr. John Richards' paper at the first regular session on Monday evening. Tuesday was devoted to a most delightful trip around the waters of San Francisco Bay, the new and in many respects remarkable tugboat "Fearless," built by the Union Iron Works for Spreckels Bros., the sugar refiners, being used for the occasion. Mr. George W. Dickie, the general manager of the Union Iron Works, was kind enough to furnish me complete blue-prints of this boat, which we shall probably present to our readers in the near future, so that there is no need for me
the sea, carrying with it a thick fog, the com-bination being a very chilling one. During our stay, however, this cold breeze with fog did not materialize, and it was a very affecting sight at times to see a masculine member of the party dressed in his warmest suit, carry-ing over his arm his heavy overcoat, with perhaps unnumbered heavy wraps for his wife, sweltering in the hot sun and sighing for a breath of the cold breeze which never came, and which I am inclined to think many of the party will always consider more or less mythical. The "Fearless" was first headed out towards the Golden Gate, through which we passed sufficiently to experience con-siderable of the swell which is al-wals running through the narrow and deep channel, the pale faces and other premonitory symptoms of sea: sickness exhibited „ by some of the \\ ladies, finally warn-ing those in charge of the excursion that it was time to go about and head for smoother waters. Turning, therefore, we laid our course for  Mare Island, where we were to inspect the U. S.' navy yard. Passing through Racoon Straits and up San Pablo Bay, we arrived at the navy yard wharf shortly before noon, and were met there by Commodore John Irwin and Chief Engineer John W. Moore, by whose invitation the

IIIIIIIIIIIIill1111111111111111111111111111111

_Fig. 6.
11111111111111111111111111111illgail

South Staffordshire wrought iron in cruci-bles with charcoal. The product was then mixed with various amounts of silicon pig, and the resulting metal examined chemically and mechanically. The materials employed had the following composition :
Descrip-tion. Total Carbon. Graphite. Si. P. Mn. S. Original cast-iron.. 1.98 0.38 0.19 0.32 0.14 0.05 Silicon pig. 1 .81 1.12 9.80 0.21 1 .95 0.04
The total carbon was purposely kept as nearly as possible constant at 2 per cent. , so as to obviate any uncertainty due to varia-tions in that element. The only element other than silicon which varied to any considerable extent was manganese ; but in this case the alterations were rather less than one-fifth of the variations in silicon, and would not appear to have introduced an appreciable error. In

his earlier experiments to be of considerable interest. There is also given the calculated transverse strength, which is of importance in connecting together tensile wend crushing strength. The tensile and crushing tests were performed by Professor A. B. W. Ken-nedy, of University College, London, while he was indebted to Mr. J. P. Walton for assistance in the analytical part of the work . The crushing strength also shows a very considerable uniformity, the only exception being the 2.5 per cent. specimen, which is probably rather too high, owing to the small amount of graphitic carbon. The maximum value of 92.54 tons was obtained with one per cent. of silicon. This value, though greater than is usual with cast iron, has been exceeded by Sir W. Fairbairn, who in 1853 recorded a crushing streigth of nearly 96 tons. The author concluded—(1). That pure cast iron—i. e., iron and carbon only—even if ob-tainable, would not be the most suitable ma-terial for use in the foundry. (2.) That cast iron containing excessive amounts of other constituents is equally unsuited for foundry purposes. (3.) That the ill effects of an excess of one constituent can at best be only imperfectly neutralized by the addition of another constituent. (4.) That there is a suitable proportion for each constituent pres-ent in cast iron. This proportion depends upon the
character of the product which is desired, and upon the proportion of other elements present. (5.) That variations in the proportion of silicon afford a trustworthy and inexpensive means of producing a cast-iron of any required mechanical character which is possible withhe material employed. " Marine engine builders," said a well-known engineer, " are apt to meet strains in marine engines by opposing to them an un-yielding force." Locomotive builders, on the other hand, allow parts to move and ad-just themselves, a point which marine engi-neers cannot adopt, or even comprehend. Said he, " the best marine engine I ever had made was built in a locomotive shop." We have received, through the courtes Professor Swain, a circular explanatory! of civil engineering department of the-4 the Masichusetts Institute of Technology. Massa-*********************************************************************from the oi
rrillsir +ha armv.a „;–;,,Tudginv

NNa

C/O not want. All overnows Ir0111 casts snvuiu be run in like manner and covered over as soon as run. By adopting this method a great saving is effected. I sha


required to avoid the sounds. The cover is not neces-sary to the operation of the dash-pot, but is put on to keep off the dirt and to add to its appearance. Fig. 6 shows the boiler feed-pump in cross-section. The valves are arranged to be re-ground while in position by the use of an ordi-nary wrench. The valve  and seat plunger and stuffing box gland are made of brass. The plunger is a work-ing fit in the pump cylinder. The lower connection of boiler feed-pump is a ball joint and ar-ranged for taking up wear. These skcondensers are  made to be operated by direct steam po\ver, as described, or by belt if desired. The steady and successful opera-the Gold stamp-mill at Telluride, Col., by electrical power, from Blast of May, 1891, to the present, has been of Incalculable bene-fit, not only to the raining interests of San Miguel, but to those of the State and coun-try in general. It has never been operated a winter through before, but has run this winter twenty-four hours per day and six days in the week from the time it started up last spring. During the time the total stoppage of the mill by reason of the defic* ency of power has averaged less than sixteen minutes per day, and of the whole amount of time lost 80 per cent. has been due to nc cessary work on the turbines and In chang-ing the sow of the water isupply for mill

1111111111'J 111,1111o111,, �llllllllil'911!I I,,

1111111111111111111.'

The Constituents of Cast-Iron.
We take the following abstract of a paper on the above subject from the Engineer. The paper was presented to the Iron and Steel
the table annexed the results of his experi-ments are collected together for the first time. everything connected with railroad operating, In addition to what has been previously pub- management and maintenance. The same is lished, there is added a specimen containing true of other subjects which the student is 1.4 per cent. of silicon, as that appeared from specially desirous of pursuing exhaustively.
the other hand, allow parts to move and ad-just themselves, a point which marine engi-neers cannot adopt, or even comprehend. Said he, " the best marine engine I ever had made was built in a locomotive shop." •411110 • We have received, through the courtesy- of Professor Swain, a circular explanatory Sf the civil engineering department of the Massa-chusetts Institute of Technology. Judging from the circular, the course of civiltgineer-ing, as arranged, is very complete, a d is made practicable by a large amount o out-door work. We note, from an outline ot some of the more important branches, that' l„ sub-ject of hydraulics and hydraulic engineeriux is given the prominence due it also that sanitary engineering is well considered. Th(, subject of railroads is very thoroughly em braced in the general course, from recon-naissance to final completion. In this branch the field work embraces actual location of several miles of road, with complete plans and careful estimates. One of the most important features of the department of civil engineering is the intro-duction of option. As an example, students who propose to follow railroad work after graduating may, if they desire, pursue this branch beyond what is embraced in the general course to an extent including about
TABLE A.-Effect of Silicon on the Properties of cast Iron.

0 0.5
1 1.4 2 2.5 3 4 5 7.5 10
Relative density at 20° C. (Water at 20c = 1.)
Cylinders.
7.560 7.510* 7.641 7.555 7.518 7.422 7.258 7.183 7.167 7.128 6.978
Turnings.
7.719 7.670 7.630 7.473 7.350 7.388 7.279 7.218 7.170 7.138 6.924
72 52 42 22 22 22 27 32 42 37
Tensile strength = per square inch.
lbs ;22,720 27,580 28,49() 31,440 35,180 32,760 27,390 25,280 22,750 11,950 10,630 •
Tons. 10 14 12.31 12.72 14.04 15.70 14 . 62 12.23 11.28 10.16 5.34 4.75
Modulus of elasticity.
25,790,000 28,670,000 31,180,000 23,500,000 23,560,000 25,450,000 21,150,000 15,640,000 18,720,000 14,750,000 13,930,000
Crushing strength per square inch.
lbs. 168,700 204,800 207,300 183,900 137,300 172,900t 128,700 106,900 103,400 111,000 76,380
Calculated trans-verse strength. Bars 1 ft. long, 1 in. square, loaded in the center.
Tons. lbs. 75.30 2702 91.42 3280 92.54 3370 82.08 3498 61.29 3446 77.18t 35: 57.45 4,• 47.7/1 46. 34.1....,  4o
specimenA1PiL-* (to7pr'044d: to be somewhat fauit3
-ENV YORK.

t b0 LI 1
Chemical Analysis.
73:2 4
Tons. 11..250.6 1.98 1.464 ct, cz)
0 / • Q., IA El 1
a ii
so i8)
0.38 0.10 )1 ' .62
1,)

1.60 0.19 1.90 0.45 1.85 0.96, 1.71. 1, ppi (1 511 t"
h , ri tp 0 0;•-■
b$5, cap

0 32 0.11 0.05 0.33 0.21 0.05 0.33. 0.20 0.04 0,80 -- 0.05 0.28 0 60 0.03 50*- 4-4 0.05
k*. Rrallel with each h, j ib-cellar sidewalk


 in which it cuts the line A B, a point e3, the distance between the p of  l bh the others, and whose length is lim-ited by the face f g and h i of the upper and lower flanges, and then find the projection of this cylinder in precisely the same the curve can be drawn. Thus : For the horizontal projection of the uppefit flange we need only find, as is clearly shown in Figs. 270, 271, the position of the major e
AMERICAN-MACHINIST-June 1892 page 3 AMERICAN MACHINIST June 16, 1892
Blade-and-Knife-Grinder

removed from the shaft here after its en-counter with the rocks. It is of manganese bronze, cast in a single piece, all of the blades being more or less bent, and some of them doubled completely back upon them-selves, the very little breaking which oc-curred showing the extreme toughness of the material. It lies upon the lawn in front of one of the buildings used for quarters, and when struck rings as clear as a bell. The equipment here is partly old and part-ly new, some very heavy new tools having been put into the boiler and machine shops during the past few years. A set of bending rolls, which are among the largest and heavi-est ever built in this country, were shipped here from the Niles Tool Works about a year ago, but have not yet been set up, the parts being housed in a small building out-side the main shops. Here also is to be seen one of the finest and most costly dry docks in the world—a beautiful example of stone mosonry which was greatly admired. Recalled to the " Fearless" by the whistle, we found the deck covered by small tables provided with most good things eatable and drinkable, these being attended to while we steamed back towards the city.
Soon after our first arrival in the city each visitor received a personal invitation to join an excursion as guest of the Spring Valley Water Company, the corporation which is now furnishing and is fixing things so that it must, in the future, furnish San Francisco with its water. Mr. Charles Webb Howard is president and Mr. Her-man Schussler chief en-gineer of the company. At 9 A. lvr. of the 18th, therefore, a special train left the station at Third and Townsend streets for Crystal Springs Reservoir. At San Mateo the party took carriages and pro-ceeded to the Upper Reser-voir, passing through, the magnificent domains of several of San Francisco's millionaires on the way. The work which has z1.-vrin■ bev•n is rnmorlr-The originally arranged program pro-vided for the presentation of four profes-sional papers during the day, but after some little previous experience with San Francisco hospitality it was concluded to avoid this by presenting three of the papers at the regular session of the evening before, the remaining one being deferred until Wednesday even-ing's session, thus leaving the day free for sight-seeing and enjoyment. Thursday morning (19th) at 8 o'clock the start was made for the Cliff House and Su-tro Heights. Mr. Adolph Sutro, the famous engineer and creator of the Sutro Tunnel, having extended a special invitation to visit his famous park and residence overlooking the Golden Gate and the Pacific Ocean, where, under an awning attached to the house, and with an extended view of the Pacific spread out before us, we sat down to a sump-tuous breakfast provided by our host, and had the pleasure of listening to an address by him which was full of instructive, enter-taining and amusing points, his apostrophe to the mule—the animal "without pride of an-cestry or hope of progeny" that had been of so much use to him in carrying on his great work—being especially appreciated. Sutro Heights occupy a rocky promontory on the south side of the Golden Gate, being in the main about 200 feet above the water. Ten years ago the spot was almost entirely a barren waste, but Mr. Sutro saw in it the possibilities of an earthly paradise, and it is of stone about a large natural rock. From here the water passes to the bathing tanks, which are large enough to accommodate mul-titudes of people, and are provided with trenches running across the cemented floors, in which are to be placed steam pipes for ob-taining any desired temperature. These trenches are covered by slabs of natural stone cut to fit in place, so that the floor is smooth and even. All this, it is understood, is to be, as the rest of the grounds now are, free to the public, the only restrictions im-posed by Mr. Sutro upon their use being those reasonable and necessary ones needed to preserve the beauty of the grounds. Shortly after noon carriages drove up in front of Mr. Sutro's residence, in which the party, after bidding their host adieu, drove through the Golden Gate Park and the city to the region of the industrial establishments, where the remainder of the day was spent in looking over the Pacific Rolling-mills and the Union Iron WorkS. In the evening, at the Academy of Sci-ences Building, a lantern slide exhibition was given, the slides being mainly representative of special machinery used in and about the mines of Nevada, particularly at Virginia City. The views as they were thrown upon the screen were explained by Mr. W. R. Eckart, who has had much to do with this machin-ery as consulting and constructing engineer. He was assisted in the exhibition by members of the California Camera Club, and the IR Mulberry bend, Mott and Baxter streets, New York City, and which I believe are the result chiefly of wrong social conditions, shared in to a greater or less extent by all F. J. M. large cities.

Automatic Shear Blade and Knife Grinder.
The accompanying illustration is of -a ma-chine intended for grinding metal-cutting shear blades, paper or planer knives or any other work of that character, and is made in sizes to grind up to 12 feet long if desired. The machine is also adapted to receive three T slots instead of being provided with the knife-holder as shown, and it is then fitted for grinding almost any sort of plane surfaces, such as scale beams, guide bars, etc., or, where desired, the machine can be supplied with facilities for doing both kinds of work. A cup wheel is ordinarily provided, and runs in a safety casing or hood, but an ordi-nary disk wheel can be used if desired. The driving mechanism is a double train of cut gearing and rack, the belts beng auto-matically shifted. The work is automatical-ly set in towards the wheel .002" at the end of each stroke. The column which is under the head of the machine is utilized as a reservoir for water, a simple rotary pump being placed within this column for supplying water to the wheel, which is returned to be again used. The machine is intended for doing a better class of work than can usually be done on machines of its class, and is accurately built with sufficient bearing sur-faces to give durability. The spindle is 21" diam-eter and runs in self-oiling boxes 8" long. The machine is built by the Horner Machine Co., Holyoke, Mass. *********************************************************************************************************************************************************


At San Mateo the party took carriages and pro-ceeded to the Upper Reser-voir, passing through. the magnificent domains of several of San Francisco's millionaires on the way. The work which has been done here is remark-able in many respects, the concrete dam for instance, being probably the largest structure of the kind in the world. The magni-tude and apparent strength of the 145-foot wall, as well as the scenery sur-rounding it, attracted at-tention, as did also the statement that the wall had required 250,000 barrels of Port-land cement in its construction. After a further drive of ten miles a point was reached in a beautiful grove where about three hours were spent in eating a most bountiful luncheon and in making and listen-ing to addresses in which the Californians tried to convey to the tourists an idea of how welcome they were to California and its hos-pitality, while the guests endeavored to frame suitable replies, expressive of their ap-preciation of all they were seeing and enjoy-ing. Resuming the drive, the train was reached, after which the only stop was a short one to examine the machinery at the Spring Valley pumping station. For a time after this dam and reservoir were constructed here, they were greatly troubled with a species of water plant which grew so rapidly as to cause considerable an-noyance. This plant was found to be relished by some kinds of fish, and a few carp were introduced to keep the vegetable growth within bounds. This was accomplished, but In a short time the carp had so increased that something had to be done to keep them within bounds. Sea lions, being expert fishermen, are now employed for this pur-pose, and, so far, I believe nothing has been atio(led to keep them within bounds, though It IN In accordance with the general scheme or natural things that there should eventu-ally be established a condition of equilibrium otwilLn the plant, the fish and the sea lions.

----111111111111P1 , uu li 1101-111111 I IS II '1.1j,j11111 ,„,,, '(( 11 111

•
AUTOMATIC SHEAR BLADE AND KNIFE GRINDER.
nearly that that he with abundance of money and a most favorable climate to help him, has made of it. The grotinds are beautifully laid out with lawns, trees and shrubs, while the air is filled witre tend to oint the way, and to point wrong, is worse than not to point at all ; but purposely to withhold important inform tion pertaining to the subject is a misdeme ors

It


****5555**************************

4 pic
bott
((((((((((((((((((((((((((((((((((((((((((((((((((((55555(((((((((((((((((((((((((((((
pg-5

  AMERICAN-MACHINIST-Dec 31 1892  A New Center grinding attachment


I shall be excused, I think, for so much apparent repetition in these instructions, because I know that, to those who have had no experience in this class of work, there seems more or less mystery in the use of two copes; but a little thought will over-come all this and the whole thing appear in all its simplicity. To foundries where no pattern makers are employed a knowledge of the methods is indispensable, as it places them (so far as this class of work is con-cerned) on an equal footing with the best equipped firms. To conclude I would say that many in-genious contrivances will suggest them-selves to the moulder engaged on this line of work ; as, for instance, a rough block with bearings for a strickle to work on can be struck off in plaster to any design which runs the same along its whole length ; this can be used as a model and backed out with clay thickness as directed. All such patterns as are shown at Fig. 1 can be treated this way, thereby enabling the moulder to choose either the method ex-plained at Fig, 2 or the one just considered. In fact, this article is but a mere outline of what can be done by these methods ; for when once entered into it will be found that scarcely any limit can be placed to its use fulness.
Good Advice. In the copy of the constitution and by-laws of a mutual benefit association sent us by Bausch & Lomb Optical Co., of Roch-ester, N. Y., is a loose leaf not belonging to the copy referred to. From this leaf we learn that this firm has established a library consisting of books, newspapers, periodicals, etc.. for the use of their employes. On this leaf are printed a few very simple rules to be observed by those making use of the library—rules in which any intention to hedge about the use of the library by annoy-ing conditions is conspicuously absent. Then follows this advice, which is worthy of being given wide publicity. We think nothing better could be got into the same space: "Read something useful every day, if only for a few minutes. gineers. Regular meetings will be held at stated intervals, at which papers will be read and topics relating to foundry practice discussed. Following are the offic, rs of the new society : President, Isaac Wirclaester, of Boston ; vice-presidents, N. Balton of Norwich, Conn., R. H. Palmer, of Provi-dence, R. I. ; secretary, J. P. Pero, Stam-ford, Conn.; treasurer, Frank Gibby, Boston, Mass.; councilors, Frank Davey, Bristol, Conn., Joseph Hennessey, Chicopee Falls, Mass.; managers, J. B. Pero ,'Indian Orchard, Mass.; Jno. Witherell, Florence, Mass.; Thos. King, Meriden, Conn.; J. S. Richardson, Rutland, Vt.; H. B. Murless, Rockville, Conn. The next meeting of the society will be at Worcester, Mass., July 2.
A Good Appointment. Charles A. Bauer, general manager of the Wardner, Bushnell & Glessner Works, at Springfield, Ohio, has been appointed one of the commission( rs of the machinery depart-ment of the forthcoming centennial of Ohio. The officers of the department of machinery should receive credit for appointing a man of Mr. Bauer's well-known mechanical and business ability to this place. Such appoint-ments will go a long way towards establishing confidence in the enterprise, and are in pleas-ing con*rast to those sometimes made for similar purposes. Mr. Robert' E. Masters, well known to our readers, has accepted a new position. The following, from the Richmond Whig, will explain : **Mr. Robert E. Masters has been ap-pointed general superintendent of the Marshall Car Wheel and Foundry Com-pany's plant at Marshall, Texas, and in con-sequence has resigned his position as man-ager of the cast-iron de_ partment of the Tredegar 9 Iron Works, to take effect on the 31st of this month. ‘-‘ As an expert in the mixture of metals and in the management of men and work pertaining to foundry practice, Mr. Masters is said to have no superior. His practical, illustrated articles in the A mEiticAN MA- O States in 1886. We call attention to this fact, because there is nothing in the way measuring is done by ordinary mortals in this country to-day, to remind them of it, and they might lose sight of it. There is always the old difference between leading a horse to water and making him drink.

Something About Chucking Drills. BY FRANK H. RICHARDS. The makers of small machine tools—the successful and established makers — ac-complish a great good for the trade other than that which arises directly from the diffusion of their own products. They do much to raise the general standard of ex-cellence in such articles. The taps and drills and reamers offered ready-made to our hands to-day are so good that even those that we make for ourselves are better than those we would have made or expected twenty years ago. The ideas of the trade are unconsciously enlarged con-tinually, and the criterion of means and of accomplishment becomes more exacting. There are no articles that I think of that are better in their way than the reamers of the best makers. Taps are by no means so satisfactory. Years ago I used to find chuck or chuck-ing drills advertised ; lately I have been looking through a number of trade cata-logues and have not discovered them any-where. I suppose that when they have been offered to the trade there has not been much sale for themlbecause they are such a simple article. Anybody can make a chuck drill, is the general impression ; con-sequently anybody and everybody do make them, and we find them scattered through our shops in every grade of inefficiency. The importance of the chuck drill as a time-saver can scarcely be overstated. In points" of the chuck (bill are unim-portant, and that anything that can be crowded through a hole is good enough, is far from the actual fact. I believe, and am Prepared to maintain, that the chuck drill requires as much care and skill in the mak-ing as most tools, and that to maintain it in good condition and efficiency calls for unusual resolution and vi..............................
&&&&&&&&pic
top


pg-6  AMERICAN-MACHINIST-March 20 1886-- 1886 AMERICAN MACHINIST pg 6


&&&&&&&&& 13 &&&&&&&&&

4. AMERICAN-MACHINIST-1922-page 2 January-5-Vol-56-No 1
this is it
4 pic
bott

https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-13-bot-top-Ads.jpeg

5 pic
top


AMERICAN-MACHINIST-page 6 October 1892       Wood Wagon/Carrage Wheel tendoning-machine.

June 16, 18892  AMERICAN MACHINIST pg 6 AMERICAN MACHINIST
more effective than facing shaken on, and gives the casting a glistening silvery surface. The reason for the grain being closer, and the carbon being diminished, is that high silicon iron contains less carbon than No. 1 or No. 2 gray foundry iron, and, therefore, at each addition the carbon will become less, and the castings will grow lighter in color. Before closing, let us say a word regarding silicon pig-iron. As silicon drives out car-bon, the higher the silicon the less the grain in a pig-iron or casting. Pig-iron contain-ing ten per cent. of silicon has very little grain, and with fifteen per cent the grain is generally absent, and high silicon irons are often full of blow-holes. Pig-iron with from four to six per cent. of silicon can be pro-duced at ordinary blast furnace tempera-tures from suitable ores, but to obtain the higher percentages a furnace must be run at an unsafe temperature. The high grades are therefore more ex-pensive, and being deficient in carbon, are no Bette! ior use than the lower grades, which are more easily and cheaply obtainable. As to the kind of silicon iron to use, it makes but little difference where the silicon comes from. One iron is about as good as an-other, if the same rules regarding chill and shrinkage are observed as are applied in the purchase of gray pig. Very high silicon irons will often give quite a deep chill, and must, therefore, be avoided. The location of the foundry will determine what irons are most desirable to purchase, and it will take some experiment to find out which irons will go best together. We sometimes hear of some one who does not believe in the use of silicon iron, or who has not produced good results by its use. It must always be remembered that for soft gray castings as thin as stove plate, the silicon should be about two and three-quar-ters per, cent. If your castings already contain that amount, it will result in damage to make it higher. The only place to use silicon iron is in a mixture deficient in silicon. For machinery castings, which should con-tain about one and one-half per cent. of sili-bon, mottled and low grades of gray found-ry pig-iron may be used, and if more cailionn is nopritarl a littlP Nn 2 nr Nn 1 mfiv
ly, to be out of truth laterally, i. e., they project from the felloe varying amounts at different points. The machine which we il-lustrate herewith is designed to correct this, the manner in which it accomplishes the work being obvious from an inspection of the engraving. Bolted to a post is a plate upon which two other plates are fitted to slide, each of these latter plates carrying a roller. The lower roll is driven by the pulley seen, while the upper one is driven by friction with the re-volving wheel, it being pressed down upon it by the hand-wheel and screw seen above. The wheel is supported upon a stud which fits into a T-slot in a plate attached to the trestle frame as shown, and one revolution of the wheel trues it, and, of course, leaves it in better condition than where a hammer is used, as it is free from disfiguring marks. The rolls are made of steel, hardened, and the frame of hard wood drawn bolted and finished in shellac. The machine is made by the Cordesman Machine Company, Cin-cinnati, Ohio.
LETTERS FROM PRACTICAL MEN.
Turning Paper. Editor American Machinist : I am impelled to write because, as I think, the " other fellow " did not enlighten your inquirer as to the best tool to use in truing paper friction wheels. Twenty-one years ago I was a sort of as-sistant engineer in the erection of one of the largest saw-mills built up to that time, and as it was what would be termed a friction-mill, 1. e. , all its important power transmissions

TURNING PAPER.
from a 500 H. P. engine were by means of friction gearing, I had a good bit of experi-ence in dealing with both paper and wood friction gearing. At first the turning of the wheels was a very tedious and unsatisfactory process. Tools containing in one form or another the different ideas shown in your nst few issues by as many eorresnondents
volve freely but snugly in the hole in A. The shank is "necked" and a small pin C in-serted, to prevent longitudinal motion of the shank and its head. Any lathe hand will, of course, understand how to set and use the tool. One peculiarity of this tool is that it is practically self-sharpening, the button being
Ribbon pulling in direction indicated by arrow
A it Weiyhts b b Stop Pins

bo

NOT PERPETUAL MOTION.
abraded on the plane side, so that in some cases it is sharper at the end of a long cut than at the beginning. The speed of the lathe should be such that the friction of the revolving button does not generate too much heat. When properly managed this tool will make a long paper friction roller shine from very perfection of surface. C. C. HILL.
Not a Perpetual Motion Device. Editor American Machinist : In your issue of May 19 you make a state-ment in your editorial headed, " Some Per-petual Motion Schemes," that is evidently contrary to well-known principles, and as you are usually correct in your criticisms and answers to disputed questions, it seems strange that you should have been misled by such a simple device as the one you men-tion as having been patented in connection with a typewriter. I do not know, and can-not tell from your description, exactly how the device is made, but I inclose a sketch of a device which will evidently accomplish the same purpose as the one patented, viz., to continually resist the motion of the rib-bon as it is wound upon the other spool. You say in revnrd to this " But of enlircp
which I have tried and found to be a simple device for the purpose. As you can readily see, the removal of tension from other end of the ribbon would allow the disk and the weights to drop back about one-half turn, or until the weights A' A' A' were all hanging in positions corresponding to A A A. I think you will see that your designation of a device of this kind as a " perpetual mo-tion device is not proper. B. W. HOYT. [Our language as quoted by Mr. Hoyt would obviously apply to the device shown by him, and is therefore erroneous to that extent, as what he says of the device is cor-rect. We have reason to believe, however, that we were correct in designating the patented device as an attempt at perpetual motion, though we are not in a position to give a demonstration of it.—ED.]
Old versus New Catalogues and Price Lists. Editor American _Machinist : Your columns abound in helpful sugges-tions in regard to a good many of the fail-ings of human nature, but there is one peculiarity which I have not seen mentioned. This is the belief in the minds of some men, who otherwise are sensible, that certain classes of those with whom they deal will always run in the same ruts, and never make any changes. Men of this kind always cling to old catalogues and circulars, and it is for their benefit that the makers of catalogues issue their almost pathetic appeal to " use care to destroy old catalogues, and only keep those of the latest edition on hand." To these men, quotations and price lists also seem to be made for eternity, and it is on account of the carelessness of such people that a good many manufacturers deem it inexpedient to put their prices in their cata-logues. One of these men within the writer's ex-perience purchased a machine for about $700, because, relying on an old catalogue, he believed he could not duplicate one of his old machines for less than $800, while, as a matter of fact, the maker of the old machine had reduced his prices, and would have sold him one for $600. This incident caused that manufacturer to discontinue the printing of prices of machine tools in his onto-Inn-no " rn


" machinist " to think. For him not to think, is soon to become an unknown quantity, and in a very short time he will be found " help-ing " in the foundry, or a " roustabout" on the river. The experience I spoke of is only one of the many " schemes" devised by the writer, who claims to be no exception unless be that he is slower than his neighbor.
•
J" —,er, and babbitt boxes each 6" long, carried on top of a vertical slide, which is raised and lowered by means of a screw and hand-wheel shown _II, fr.,it. The cylinder is 5" square, cast on the shaft, and is provided with T slots on four sides, which admit -f changing the location of the knives to desired location. The length of the head is governed by the kind of work it is to be used for. It is compact, occupying but 3' X4' floor space. Manu-factured by the Garden City Fan Company, Chicago, Ill.
groove 'ill tilt) ()eatsa the wood I i'"xl r 1,4, 1'1+('(+i \'(+ hemp, pia it, oil iny rod, screwed up the nut and had as good a head as any one wood want for a short time.
Another piece of oak 1" thick did duty for a cylin-der-head, and was ready to " run " an hour before noon. Of course all hands were pleased when the engine moved off nicely and did its work well. But I reckon Mr. Owner must had some communication with Prof. Sweet, for his remarks proved it: " Pshaw ! we could have done that ourselves." HARRY HART.
New Wood-Working Tools.
The power mortising machine which we illustrate, has a frame cast in one piece. It is r .ed with two tables, one of which is and the other compo(md ; the work
MACHINE F.

The Theory of Gas Engines.
EXTRACTS FROM A TREATISE ENTITLED, ' NOU-VELLES RECHERCHES SUR LES CONDITIONS PRACTIQUES DE PLUS GRANDE UTILISATION DE LA CHALEUR ET EN GENERAL DE LA FORCE MOTRICE," BY M. BEAU DE ROCHAS.
When the tracing point is any ordinary When we examine what takes place in the point on the roller, the curve traced will be ai combustion chamber of a gas-fired boiler, we right angles*tO the pitch curve, but when it are struck with the enormous volume which is the pole of a spiral' it may cross at an gases raised to a high temperature attain. If angle. Fig. 22. tl4e combustion, , on the other hand, takes
Although rolled onrves and odontoids -are N constantivolume, the dilation w;" identical, they cannot readily be consideredc`.-4 6v7r-' 1-s, an the same, .for the eycif)ia  -
14, galtio41 at home, fled 414► rool dolidota smiying " I learned drawing by tho kitchoil II. 1,1.1.0 are a number of person Nvlio do sire to study let them club toget10 and start a drawing school of their own. Lot them ac-
quire a book treating upon the subject ; pro-vide themselves with a room where they can w6rk undisturbed, and begin the work at the beginning by learning to draw lines and curves ; to erect perpendiculars ; to lay off angles, and to construct squares, triangles, and polygons. Let them begin at the very beginning, and not try to " know a thing before they learn it.'! Become accustomed to handling the tool


The only place to use silicon iron is in a mixture deficient in silicon. For machinery castings, which should con-tain about one and one-half per cent. of sili-bon, mottled and low grades of gray found-ry pig-iron may be used, and if more silicon is needed, a little No. 2 or No. 1 may be added, it being an easy matter to keep up the silicon, or very close gray, and even white pig-iron and burned scrap may be used, if the required percentage of silicon is restored by additions of No. 1 pig, or by silicon pig-iron. A difference of opinion exists as to the number of brands of pig-iron to be used at one time. It is impossible to run a blast furnace regularly. The silicon varies considerably in the pigs made from one cast, and a furnace is likely to go wrong at any time. It is impossible to refuse iron made at such times, if it were possible to determine when the iron was not such as was purchased. It is therefore best to use a variety of makes of pig-iron in makin3 up a mixture ; the greater the variety th02tter. Then any temporary variation in one or two of the irons will not materially influence the castings. It is sometimes claimed by the blast furnace manager that it is better for him to make a proper mixture of ores in the furnace, so as to produce exactly the iron desired, and sell the iron on a guaranteed analysis, and not trust to the foundry-man's judgment as to what a mixture should be. It would be a good idea for all furnace men to produce this kind of iron if they are able to do,so, but as their furnace may go back on 'item several times in a week, it is better to have several brands of such irons mixI together, for the reasons just given, If any variation should then occur to influence the castings, a s all addition of silicon pig will set all right t once.
friction gearing, I had a good bit of experi-ence in dealing with both paper and wood friction gearing. At first the turning of the wheels was a very tedious and unsatisfactory process. Tools containing in one form or another the different ideas shown in your ast few issues by as many correspondents were tried, and found so glaringly inade-
not tell from your description, exactly how the device is made, but I inclose a sketch of a device which will evidently accomplish the same purpose as the one patented, viz., to continually resist the motion of the • rib-bon as it is wound upon the other spool. You say in regard to this, " But, of course, if it will continually resist motion more than
his old machines for less than $800, while, as a matter of fact, the maker of the old machine had reduced his prices, and would have sold him one for $600. This incident caused that manufacturer to discontinue the printing of prices of machine tools in his catalogue, "making it necessary for all wise men [as one of my associates somewhat roughly expressed it] to take time and use a two-cent stamp to procure quotations, because fools would persist in using old catalogues." Another phase of this peculiarity is the failure to ascertain or bear in mind that you are making new lines of tools. Such a man will say to you, " I did not think that you made shapers, although, now you speak of it, I think I have heard so. At the time I bought my shaper I had you firmly fixed in my mind as a maker of planers. I am sorry I did not know you made shapers, for, while I have a good tool, I always liked your planers best in the market, and perhaps I would have had the same opinion of your shapers." But perhaps the most provoking mani-festation of the peculiarity of these sure-you-never-make any-change kind of men, is their belief that you never make any improvements in the articles you mauu-facture. They have used a tool for a good many years, and are convinced that that is your standard, and the first thing you know they will buy one of another make, because it has features which your old one did not have, while, as a matter of fact, these improvements were perhaps originated by you, and are embodied in your present machines. As I have intimated, these men in other respects are sensible, oftentimes being good mechanics and good manufacturers. The trouble is due chiefly to thoughtlessness or carelessness, and so I would urge your younger readers in particular to form the habit lof looking. over the entire field when they desire to be posted, or to make pur-chases. I beg that they may not compare an old catalogue of one maker with the new one of another, or, under similar circum-stances, an old tool with a new one. All

Tice Truing Machine.
When tires are carriage or wago apt, especially whe
runk on to the felloes of wheels, they are very the work s done hasti-

TIRE TRUING MACHINE.
quate that a little extra mental steam was put on and a tool evol ved which was a thing of beauty and a joy to the turner. A glance at the accompanying sketch will show the tool referred to. A represents the butt end of a common lathe tool with a hole drilled in say 1f" longitudinally. indicates the cutting tool, which consists of a button of about 1" diameter, having a nicely turned shank fitted to occupy and re-
that due to its friction, it would produce motion in the opposite direction, and it is nothing more than a perpetual motion de-vice, pure and simple." There are dozens of ways of effecting a resistance to continued movement in one di-rection by means of weights, none of which will make more than one-half revolution in an opposite direction if left to themselves. The inclosed sketch represents one of them,




&&&&&&&& 13 &&&&& &&&&&& 14 &&&&&&&&&

4. AMERICAN-MACHINIST-1922-page 2 January-5-Vol-56-No 1

https://antiquemachinery.com/images-1887/1887-American-Machinist-1887-Dec-31-pg-14-top-Ads.jpeg https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-14-bot-Ads.jpeg https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-top-Ads.jpeg https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-bot.jpeg

4 pic
bott

https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-14-bot-Ads.jpeg

pg 14 pic
top

pg-7  AMERICAN-MACHINIST-June 16 1892   page 7    AMERICAN MACHINIST


PUBLISHED WEEKLY
BY American Machinist Publishing Co.
HORACE B. MILLER, Pres't. JACKSON BAILEY, Vice-Pres't. LYCURGITS B. IVIooRE, Treas. and Sec'y. 96 Fulton Street, New York.
JACKSON BAILEY, HORACE B. MILLER, Editor.
Business Manager.
F. F. HEMENWAY, Mechanical Engineer.
The American News Company, Publishers' Agents, New York. The International News Company, 11 BOUVERIE STREET, Fleet Street, LONDON, ENG., will receive subscriptions for the AMERICAN MACHIN-IST, at 14/7 per annum, postage paid.
DEALERS SUPPLIED BY The American News Company, New York. The American News Company, Denver, Col. The American News Company, Kansas City, Mo. The American News Company, Omaha, Neb. The American News Company, St. Paul, Minn. The New York News Company, New York. The National News Company, New York. The New England News Company, Boston, Mass. The Central News Company, Philadelphia, Pa. The Western News Company, Chicago, Ill. The St. Louis News Company, St. Louis, Mo. The Cincinnati News Company,Cincinnati, Ohio. The Detroit News Company, Detroit, Mich. The Pittsburgh News Company, Pittsburgh, Pa. The Baltimore News Company, Baltimore, Md. The Rhode Island News Company. Providence, R.I. The San Francisco News Co., San Francisco, Cal. The Brooklyn News Company, Brooklyn, N. Y. The Williamsburg News Co., Brooklyn, E. D., N. Y. The Newark News Company, Newark, N. J. The Northern News Company, Troy, N. Y. The Albany News Company, Albany, N. Y. The Washington News Company,Washington, D. C. The New Orleans News Company, New Orleans, La. The Montreal News Company, Montreal, Canada. 'rho Toronto News Co., Toronto, Ontario, Canada. The Toronto News Co., Clifton Branch, Clifton, On-tario, Canada.
SUBSCRIPTION. $2.50 a year in advance, postage prepaid in the United States and Canada. $8.50 a year to Foreign Countries, postage prepaid. ADVERTISING. Transient, 35c. per line, each insertion. "Business Specials," 50c. a lino.

 we wilt neither publish anythinil Ia_AM  ER' CA_1


One Way to Improve Steam-engine Economy.
Improvement in the steam-engine for the past fifty years has consisted mainly in put-ting into practice what was already known to be desirable. In this, as in most other affairs, it was found to be one thing to know what was desirable, and another thing to ac-complish it. Better plans of construction have rendered the use of high steam-pressure and high piston-speed more common, and these, with better workmanship and careful attention to details, have brought about better economy. Considered as a machine, recent improvements in the steam-engine have been important. Undoubtedly there is room for further improvements in these directions—there is no such thing as standing still—but the ground has been so well covered that nothing radical is to be expected, except it come from the establishment of new and important facts in the science of steam engi-neering, and from a direction not now very obvious. Improvements in tools and ma-chinery for doing good work cheaply have had much to do with improving the construc-tion of the steam-engine, not only by affording the means for doing so, but frequently by pointing out the direction for improvement. Aside from this, the introduction of better instruments for, and better methods of, meas-uring effect has been important. But steam engineering embraces not only the designing and construction of steam-engines and boilers, but their management, as well, and here there is room for general pro-gress in the direction of better economy. If not a new field, it is one that has not been as extensively cultivated as it ought to be. Users of steam-engines are, owing to long and persistent effort, fairly well educated in the economy of paying for good design and construction ; but they do not to the same ex-tent appreciate the value of good manage-ment. Sometimes they are, so it seems, of the opinion that there is not much in the way of economy in the every-day management of a steam plant, except what is comprised in stopping and starting, and in keeping up the motion for the required number of hours ; their interest ceases after hiring an engineer just eom potent f(?r this duty, or employing a , a‘tont etigInewr who finds no (.0 OpiTIL
• [MARCH 20, 18s6
probable that in many instances they would find something startling in the difference. Further investigation would sometimes re-veal incompetence in the engine-room ; but, perhaps, oftener the cause would be found in their own refusal to second the efforts of a competent engineer. Either would be about equally fatal to good economy. Not that the every-day economy of a motive plant is likely to equal that of a closely conducted test of the same engines and boilers, but the latter shows the possibility that may be closely ap-proximated. To insure that the best at-tainable results are being obtained, it is abso-lutely essential that comparisons be readily made. This has been provided for by modern science and common sense, and to fail to make use of what is thus provided is to put to one side one of the best known means of securing economy. When, as is often the case, the results of actual practice are about fifty per cent. those of a fairly conducted test there is good reason to look for some-thing wrong. But means of easily making comparisons must be provided if any advan-tage is to be taken of the experience of others. Economy in motive power is made up of small things, and observations must be specific as well as general. When the operation of the motive plant gets outrageously bad, an expert is called in to straighten matters out. But this is not until after a good deal of waste. When it is done, the cost of discovering the trouble, to say nothing of the cost of the remedy, is likely to be more than that of previously supplying the engineer with such things as he required, and by reasonable encouragement making an ex-pert of him, ready to suggest preventives in-stead of costly remedies. The interests of manufacturers call for economical motive power, and a very apparent direction for improvement in this respect is through the engine-room. We hear a great deal of the need of skilled workmen in other branches, and but little of the need of skilled engineers, yet economy in manufacture must begin in the engine-room. Engineers must to a greater extent than most other workmen educate themselves ; they ought to be afforded every reasonable opportunity for doing so. Not out of any sentiment, but because it is policy to do so. Whenever this is (lone we hiLvo novor heard vomidailit that It did
Territorial Limits of Natural Gas.
Among later developments of the natural gas boom are published statements that " pay-ing " wells have been discovered, and are being " worked " in a number of towns as far removed from the original centers of pro-duction as Central and Northwestern Ohio. We believe, also, that equally confident claims are made for some Southern towns. If the published statements of the new " finds " are well based, it would seem that the territorial limits of the natural gas " fields " are not yet very well defined, or with present knowledge of the subject capable of very close defini-tion.
A New Railroad Brake.
It is not often that a really great invention is born of what a lawyer would call " malice aforethought." A Virginia inventor is living proof that such an exception may occur. In a local paper he publishes an advertisement highly laudatory of an automatic railroad brake, which he has " discovered " and pat-ented, but omits to publish any explanation of its construction or the principle on which it acts. In the published card, he says he was standing at the " station " as a freight train went by, and noticed that the brakeman tried to stop the train, but found some difficulty in doing so immediately. The future inventor thereupon remarked to some gentlemen present that he proposed to get up an automatic brake, which would stop the train without " all that trouble." He now announces that, after four years of hard study and almost sleepless nights, he has accomplished his object, and closes by ex-pressing his hope that railroad managers will examine his " patent right " at once, that they may " relieve the poor, worn-out, rest-broken and frozen brakemen;" his " greatest desire " being to see them released from their exposure and sufferings. His next greatest is not stated, but it is to be hoped that rail-road managers will be willing to gratify it, if it is shown to their mechanical satisfaction that our Virginia friend's claim for his inven-tion are as well based 1LH w„ think, however, Hint. toast, riiilr11a1l mitiingorti

*************************************************************************

SUPPLIES FROM RANT PRESSURE
eapest
power known. able for b o wing h Organs, running ng Presses, Sewing es in Households, gLathes Scroll rindstones, Coffee Sausage Machines, Cutters, Electric Elevators, etc. It little room, no firing el,ashes, repairs, en-., explosion, or delay, ,ra insurance, no coal Is noiseless, neat, act, steady ; will work ir pressure of water 15 lb. ; at 40 lb. pres-ELS 4-horse power, and sty up to 10-horse 1 for circular to HYDI the ch Invalu Churn Printi Machin Turnii Saws, Mills, Feed Lights, needs up, fu gineer no ext bills. cutups at an above sure h, pad power. Prices from $15 to $300,caSenc

TEE BURIN WATER MOTOR CO,, Newark, N. J. Iron and Steel DROP FORGING Of Every Description, at Reasonable Prices. THE R. A. BELDEN 00„ DANBURY, CT. MANUFACTURER OF

E. A. WALKER, Manufacturer, 75 Laurel St., Philadelphia, Pa. Nifty •AT•EvERY•E 10.351f ION LOGUES•ON•APPLICATION H EA c) e. Ft 5, POINTEFtj RRIAGE•BOLT MACHINERY • AT C. NUT 8,WAsHER TAPPERS OF EVERY StIll WIRE•NAIL SPECIALISTS FU rU RN I 5 -rilENTY06t,-ICK1.-s-Tri.•Pkwi-5 _ ,THE u S •ilittifiTIONALlieltaY CO TIFFIN 01110,U•5 No more trouble with Loose Pulleys. ORMSBY'S PATENT SELF-LUBRI-CATED PULLEY BEARING settles the business. Can be used on old or new shafts, and in any position. Send for circular and price list. GLOBE LOOSE PU LLEYCO. Covington, Ky. 1111,1111",1,1 BORING AND TURNING MILLS. LAKE VILLAGE, N. H.

OSGOOD DREDGE CO., Albany, N, Y. RALPH R. OSGOOD, Pres. JAMES H. BLESSING, Vice-Pres. JOHN K. HO WE, Secretary and Treasurer. MANUFACTURERS OF Dredges, Excavators, Ditching Machines, Derricks, Etc, It plate part o shifti install Combined Steam Excavator and Derrick Car. L. 8. STARRETT,

Manufacturer of FINE TOOLS ATHOL, MASS. SEND FOR FULL LIST. Planers in Stock. One 36" x 36" x 9'. One 42" x 36" x 12'. Two 48" x 48" x any desired travel. One 42" x 42" x any desired travel. The above are held at very Low Prices. The Newark Machine Too Works, NEWARK, N. J.

**************************************************** Section of Copper-Wire-Sewed Light Double Belting, specially adapted to use on cone pulleys and other hard places. Manufactured by the PACE BELTNC CO., concord, N. H. Also manufacturers of Staple and Special Grades of Leather Belting and the HERCULES Lacing. Send for Catalogue No. 2.

**************************************************** RICE AUTOMATIC CUT-OFF ENGINE Ass OIL ENGINES. For Printers, Steam Yachts, pumping water, sawing wood, making ice-cream,Carpenters, Mechanics. 1 to 5 H. P. Fuel, Kerosene. No duA. Auto-matic in fuel and water sup-ply. Illustrated Catalogue free. Mention AMERICAN MA-CHINIST. SHIPMAN ENGINE CO., 92 Pearl St., Boston, Mass. KORTING GAS ENGINE. 12 Sizes, 1 to 60 EL P.

**************************************************** Satis-faction uaran-teed. Thousands in use in Europe, & 36 engines running in N. Y. City. KortingGas Engine Co., Ld. 60 Barclay St. New York. Self-Contained. Sensitive Governor. Balanced Valve. High Speeds. Stationary Oilers. Best Economy. Gold Medal Cincinnati Exposition, 1884. THE JOHN T. NOME MFG. CO., T-T3E1UP.13.31,C4, IV. Ir. THE Mtn ERIE, PA. ENGINE CO"

****************************************************9************************************************* PORTABLE AND STATIONARY ENGINES and BOILERS
Send for Catalogue and Prices. PORTER-HAMILTON ENGINE. II FOR HEAVY WORK & LARGE POW-. ERS. EXTRA HEAVY DESIGN.
Send for Catalogue. WILLIAM TOD & CO.04. YOUNGSTOWN, OHIO. 75 Portable and Stationary Steam End piles and Boilers, both new and second-hand, in a great variety of sizes, from 2 to 75 H. P. Steam Poll er and Drainage Pumps for all kinds of duty. One second-hand Portable steam Saw Mill, one large second-band Punching Press. Shafting, Pulleys, Hangers and Belting. Parties in need of Machinery will do well to correspond with us for prices. S. L. HOLT & CO., 67 Sudbury Street, BOSTON, M C

&&&&&&&&&&&& 15 &&&&&&&&&&&&&&&&&&&

15. AMERICAN-MACHINIST-11887-page 15-Dec-31

15 https://antiquemachinery.com/images-1887/1887-American-Machinist-1887-Dec-31-pg-15-top.jpeg top:20450 15 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-15-bot-Ads.jpeg top:21050 16 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-top-Ads.jpeg top:17990 16 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-bot.jpeg top:18660

4 mid bt pics 15 pic
bott

https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-15-bot-Ads.jpeg

pg 14 pic
top

pg-10  AMERICAN-MACHINIST-Oct 3 1887  AMERICAN MACHINIST

AMERICAN MACHINIST NEW TANGYEJ BUCKEYE AUTOMATIC1 CUT-OFF ENGINES In Use, Over 1,000. 25 to 1,000 H. P. These engines are the combined result of long ex-perience with automatic cut-off regulation, and most careful revision of all details. They are designed and constructed for heavy and continuous duty at medium or high rotative speeds. Highest attainable Economy in Steam Consumption and superior regulation guar-' anteed. Self-contained Automatic Cut-off Engines --- 12 to 109 H. P. for driving Dynamo Machines a specialty. Illustrated Circulars, with various data as to practical Steam Engine construction and performance, free by ----- mail- Address, BUCKEYE ENGINE CO., Salem, Ohio. SALES AGENTS • W. L. SIMPSON, 138107,ffinTBRUBIgilGi. lilt.aViiilstr8700111,trrglittioiln tiJnac4sonfits., Chicago, Ill.• KENSINGTON ENGINE WORKS, LIMITED, PHILADELPHIA. 4 Sole ensues and for Itew-hrseir(South orTienton):Easteiii:PennsiliinirDelaiire, Marylanifanc"-rfilli—nia. E ALBANY STEAM TRAP CO.'S BUCKET AND GRAVITATING TRAPS_ Automatically drain the water of condensation from HEATING COILS and return it to the boilers, whether the coils are above or below the water level in boiler, doing away with pumps and other mechanical devices for such purposes. Send also for Circulars of Blessing's Renewable-Seat Stop and ('heck Valves, Pump Governors, and Water Circulator and Purifier. Albany Steam Trap Co. A,41.31(7 MANUFACTURERS OF x STEAM ENGINES PULL vaati..11' Sizes Varying from 30 to 20:0 Horse Power. Horizontal or Vertical, Direct Acting or Beam, Condensing,Non-Condensing or Compound. Send for Circular. TIANTS SLED. evsralic Gravitating. "OTTO" GAS ENGINE WORKS SCHLEICHER, SCHUMM & CO., 33d and Walnut Sts. GINE TUBULAR BOILERS. GEO•R•BARNARD • AGENT - Branch Office, 130 Washington St. PHILADELPHIA. CHICAGO. OVER 25,000 ENGINES IN USE. "GUARANTEED Erigine doing Eclipse Corliss Engine. Non-Condensing, Condensing, Compound, 40 TO 1,000 H.P. Send for Circulars. E.P, HAMPSON & CO 36 CORTLANDT ST., NEW YORK, Sole Eastern Agents. M. J. TIERNEY, FRICK COMPANY, Builders, WAYNESBORO, PA. 20 NORTH CANAL A. GENUINE " COIRMISS." STREET, CHICAGO, WESTERN, AGENT. CRANK PLANERS Superior Design & Workmanship, Extra Heavy (1600 lbs.) PATENT UNIVERSAL SCREW-CUTTING CEBITER D. EPT4IKAIGalEC 46,_TWIST DRILL GAUGE. Fine Machinists' Tools.—E. Boston, Mass—Send for Oircular obertWhiteht11,4/47,3Gz-FN" Op MANU MPRoVFC X Y. P0- VALVE SAAGXAt. 0 _ 1111110,, ' STATIONARY BOILERS. 40 TO 1,000 H.P. Send for Circulars. E.P.HAMPSCN&CO 36 CORTLANDT ST., NEW YORK, Sole Eastern Agents, NOMIiiiii01111.. M. J. TIERNEY, 20 NORTH CANAL A. GENUINE " CORLISS." STREET, CHICAGO, WESTERN, AGENT. CRANK PLANERS Superior Design Workmanship, Extra Ileavy (1500 ibS.) DOWN, ANGULAR AND CROSS-FEED, TO PLANE 12x16x15. THE R. A. BELDEN CO., DANBURY, CT. Brain's Piston Ring Packing 7---* Perfectly balanced against un-due pressure in all directions. Preserves bothcylinder and rings. Allows no waste by either fric-tion or leakage. Call and see working model, expressly made to demonstrate advantage s claimed. For packing or shop rights, address JAMES BRANDON, 390 Eleventh Ave., New York. Machine Tools. New and Second-hand, on Hand. t2 in.x6 ft. Engine Lathe, new 13 in.x6 ft. 64 Ames, 14 in.x6 ft. Si Blaisdell, 66 16-20 m..x.6-8-10 4t 12 ft. Bridgeport TV' if 16 in.x6 Blaisdell, 18 in.x8 ft. " Blaisdell, 66 24 in.x10-14 dc 20ft. " Ames, fif 23 in. x,, -12 & 14 1-2 ft." Bridgeport, 66 24 in.x16 ft. New Haven, good order. 30 in.x14 ft. if W. and L. pattern, new. 39 in x 15 ft. Eng. Lathe Lowell, 54 in.x30 ft. Engine Lathe, Niles, good as new 16 in.x42 in. Planer Bridgeport, new. 22 in.x4 ft, 46 Pease, new. 22 in.x6 ft. 46 Powell, 22 in.x5 ft. g 6 Hendey, new. 26 in.x5 ft. ' Biglow, good. 26 in.x7 ft. Brettell, new. 30 in.x7 ft ii New Haven, fair. 30 in.x8 ft. " Hewes & Phillips, new. 30 in.x10 ft. 6 f Powell. 12 in. Shaper, Traveling Head, new. 1.2 in. ' Hewes & Phillips, 13 in. Stroke, 9 ft. Bed, Tray. Head Shaper, Barr, A 1. 24 in. Shaper, Bridgeport, 24 in. " Wolcott, 32 in. Drill, Bickford, A 1. No. 1 Screw Machine, Wire Feed, Pratt & Whitney 16-18-20-23 25-28-34 in. Drills. 30 in. Radial Drill. No. 5 Screw Machine. Jones & Lamson. No. 2 Die Sinker, Pratt & Whitney. new. Center Bolt Cutter, new. 5 in Cutting Off Machine. Star. Merrill Drops, 800 lbs. good order. Bement 2250 lb. Steam Hammer. Milling Machines, Screw Machines, Slate Sensitive Drills. Gang Drills, and full line of all kinds of Machine Tools. Send for list and specify what is wanted. new. E. P. 13TJ31_41...A.1113, 72 Warren Street and 62 .illege Place, New York. PATENT UNIVERSAL SCREW-CUTTING CENTER DEPTHKV1 ANGLEc AND J. „TWIST DRILL GAUGE. Fine Machinists' Tools.—E. Boston, Mass—Send for Circular To Buyers of Engine Lathes We are now making from entirely new designs, extra heavy 17", 19", 21", 24" and 27" Engine Lathes (the most popu-lar sizes), of which we are making a ripecialty, and manufacturing in lots 01 not legs thapt1100 at a time. We make no charge for extras. Every lathe is furnished with hollow spindle ; the 19" with lx" hole, and 21' with 17/6" hole. Every lathe has substantial com-pound rest,heavy tool post (bar steel), rest to turn full swing, following rest with adjustable jaws to take any size from 234' down, with extra tool for shafting. Full set of gears to cut from 2 to 18 threads including 113 pipe thread. Automatic stop on carriage. Separate screw and rod feed, and the most substantial and easily managed taper attachment made. Cones and gears of large diam-eter and wide belt. Studs, screws and small gears are steelor gunmetal. Webbed live heads, heavy tail stocks. No worm or worm gears, no weak reverse plate. Perfect lubrication for all running parts, including carriage. Lead screw inside of shear, double nut (cut from solid), and taking hold of car-riage directly under the line of strain. Friction counter-shaft, the most dura-ble made. Our prices are reasonable for cash, and from which no deviation will be made. Our written guarantee accompanies every lathe. GUARANTEE. We guarantee this lathe to be equal in workmanship, truth, accuracy, solidity, Material and finish, to the best made, and hold ourselves legally liable for this guarantee. LODGE, DAVIS & CO. MANUFACTURERS Machine Tools, 169, 161, 163 and 165 EGGLESTON AVE., 06. 138,146, 148, 150.152, 154 E. 6th St, CINCINNATI, OHIO. (See our advertisement on last page.) 0-9° SLIDE VALVE F...1A STATIONARY BOILERS, GENERAL MACHINERY, %ON A"I \\AG5 ND BRASS CP-- 0-1ORK Oppic Room 6, COAL AND /RON EXCHANGE, COELCORTLANDT &CHURCH ST. JOHN MCLARJEN, BUILDER OF STEARNS MTG. COMPANY, ERIE, PA-ENGINES from 15 to 400 Horse Power. Boilers of Steel and Iron supplied tho trade or the user. Send for Catch goes. SAW MILLS and GENERAL MACHINERY. Works at Eft fE, PA. New York Store, 40 Cortlandt Street, SMITH A BARNHURST, - - MANAGERS. NO BOILER. NO STEAM. NO DANGER. FUEL, CRUDE PETROLEUM One New Putnam Screw Cutting O$ Engine Lathe, 36" Swing, 15' KEROSENE. Bed. CORM Engines, AIR Compressors and BOILERS. 11013011.EN, N. J. HILL, CLARE & 156 to 164 Oliver St., BOSTON, MASS. W0BEING Manila ON HUD, Adams & Richards Machine Co. New Brunswick, N. J. as they must be moved before Jan. 1. One Second-Hand Putnam Screw Cutting Engine Lathe, 42" Swing, 14' Bed. Both these Lathes will be sold low,

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& &&&&&&&&&&&& 16 &&&&&&&&&&&&&&&&&&& 15 https://antiquemachinery.com/images-1887/1887-American-Machinist-1887-Dec-31-pg-15-top.jpeg top:20450 15 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-15-bot-Ads.jpeg top:21050 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-top-Ads.jpeg top:17990 https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-16-bot.jpeg top:18660

pg 16 pic 0000
bott

***********************************************************************************************************

https://antiquemachinery.com/images-1887/American-Machinist-1887-Dec-31-pg-15-bot-Ads.jpeg

pg 14 pic
top

***************************************************************************************************


Nine  AMERICAN-MACHINIST-June-16-1892    page 9 AMERICAN MACHINIST
-

JUNE 16, 1892] AMERICAN MACHINIST 9
(253) A. S. S., Wilkes-Barre, Pa., writes : Will you kindly explain in your Question and Answer columns, why some authorities give the formula for the deflection of an I beam loaded at the center: D = 36TVla E
and others give
D — W 13  48 E
in which D = deflection in inches ; W = load in pounds ; 1 = span in feet ; E =- modulus of elasticity; and I moment of in-ertia of section B D' — 2 b da ; see sketch.
12 A.—In the first formula the length 1 is taken in feet ; in the second formula the same


length is taken in inches. In finding the moment of inertia, the dimensions of the section are taken in inehes for both formulas. Under these conditions the same result will be obtained with either formula.
(254) C. E. K , Watertown, N. Y., writes : Inclosed please find sketch of a lever with a bearing on each side. Kindly give formulas for designing a lever of this kind when the force applied at one end is given. I have several good books, but they do not give full directions for laying out a lever of this kind. I think full directions for designing such would be appreciated by the mechanics who read your Question mod Answer columns. The length of the lever, position of fulcrum is given, and the force applied at one end, and that transmitted at the other is also given in the sketch. What is wanted is how to de-termine all the dimensions of the lever, size of pins, and the shearing stress on them. I am aware that the above request will require considerable of your valuable time and space in your columns, but I feel sure that others beside myself will thank you for publishing such useful information. A.—For simplicity, we will assume that the lever is perfectly plain, that is, without hubs or holes; this re-duces the lever to a simple beam supported t lu ends with at concentrated load between the supports. We further simplify the sub-.. I... it— it ldivot.


when b is known. The ratio between the depth and breadth is arbitrary; let us decide to make b = I inch, then, according to form-ula (3), we have 2.600 X 24 = 2,000 x.75 x d2 62,400 = 1,500 X d2 hence 62,400  _ d2 = 41.6. 1,500 The square root of 41.6 is 6.44, say 61 inches, for the depth d of lever at the section through x y. The depth at the end of the lever should be equal to one-half of the depth, at x y; hence at the end the lever will be 31 inches deep, and the same depth will be required at the opposite end. The shearing stress on the pin N is equal to the sum of the forces acting at the ends of the lever plus its weight, the lat-ter we shall neglect; hence we have 2,600 + 10,400 = 13,000 pounds for the shearing stress on two sections of the pin; therefore one section will have to resist 6,500 pounds. For safety we may allow a shearing stress of 10,000 pounds per square inch; this gives us  6,500 10,000 = .65 square inches for cross section of the pin, the corresponding diameter is la inch nearly. But generally in practice we have to increase this diameter so as to reduce the wear in the bearings, or prevent heating. In many cases we should not have a greater pi ess-e than 1,500 pounds per square inch of pro-jected area; frequently this pressure has to be less; let us, however, assume that the pressure must not exceed 1,500 pounds, and that the diameter of the pin and the length a of the bearing are to be equal to each other. The total pressure on the end or journal _N of the pin we have found to be 6,500 pounds; hence its projected area (which is equal to, the length a multiplied by the diameter) is 500 equal to 6,= 4.33 square inches; now 1,500 since the length a is to be equal to the diam-eter, we have A/ 4.33 = 2.08, say 2 inches for the diameter of the pin ; but drilling a 2-inch hole through the lever will weaken it to some extent; this loss of strength must be made up by the hub; we have therefore now to find the breadth B of the hub. To find this breadth we again apply formula (1), but now we have to deal with a cross-section at x y like that shown in Fig. 2. The moment of inertia 1 of a cross-section of this form is b' (118 — A'), and the y alue of c in formula 12 (1) is now H; hence formula (1) takes the following form : W X 1= SXBX (H3 — h3); (4) 12 X H adopting again a value 12,000 for S formula (4) reduces to

 qvm_we have 2'600 = 1.73 square inches for the 1,500 projected area, and t/1.73 = 1.31 inches for the diameter of the pin and width of hub. At the other end of the lever we have a force of 10,400 pounds acting upon it, and if the pin in this end is also loose, and the pressure per square inch is not to exceed 1 500 pounds, 10,400 then we have 10,= 6.93 square inches 1,500 for the projected area of the pin in the hub; if the breadth of the latter is to be 4 inches, then the diameter of the pin will have to be 6.93   = 1.73 inches. 4 _

line. In Fig. 1, take any point m on f h, and through it draw a line m p parallel to a, 0, cutting the resultant in the point p ; through p draw a line p a parallel to d1 0, cutting g i in the point v. Join m and n by a straight line. Through 0, in Fig. 3, draw 0 e parallel to m 7 cutting a, d1 in the point e; then a1 e will represent the magnitude of the reaction f h, and e d1 will represent the magnitude of the reaction g i. The construc-tion of Figs. 2 and 4 is similar to that of Figs. 1 and 3; the position of the letters is such as to make the foregoing explanation applicable in this case. The result of the construction is that b3 d2 drawn through the point 1, parallel to b1 d1, and both equal in length, gives the required resultant; f h parallel and equal in length to e b1 gives the reaction of the left support; and ,q i, parallel and equal in length to e d, , gives the reaction of the right support. Of course it is assumed that all the forces act in each construction in one plane. Transmit Advertisements 50 cents a line for each insertion under this head. About seven words make a line. Copy should be sent to reach us not later than Saturday morning for the eneuing week's UM.
Grant Gear Wheels, Gear Cutting, page 20. Shafting Straighteners. J. II. Wells, Tampa, Fla. Ideal Drawing Stands. M. C. Hammett, Troy, N.Y. Forming Lathes, Mer. Mach.Tool Co., Meriden, Ct. A. D. Pentz, Consulting. Tools. Etizabeth, N. J. Tool Holder: Armstrong Bros. Tool Co., Chicago. See Randall's new Adv., page 11. "Bradley's Power Hammers. the best in the world." 20 sizes. Bradley & Co., Syracuse, N. Y. The Improved Justice Hammer. Williams, White & Co., Moline, Ill., manufacturers. Pattern and Brand Letters. A variety of sizes and styles. Heber Wells, 8 Spruce St., New York. Davis Key-Seating Machines kept In stock by Manning, Maxwell ,St Moore, 1l1 Liberty St., N. Y. Selden Packing for stuffing box, with or without rubber core. Ranaolph Brandt, 38 Cortlandt St., N.Y. S. A. Smith 23 S Canal St., Chicago, Ill., is agent for Holbrook's new loaded rawhide mallets. "Boiler Tests lay Balms." Get sample pages from Gowing & Co., Mason Building, Boston, Mass. Guild & Garrison. Brooklyn, N. Y., manufacture steam pumps, vacuum pumps, vacuum apparatus, air pumps, acid blowers, filter press pumps, etc. For the Latest Improved Diamond Prospecting Drill, address the M. C. Bullock Mfr. Co., cor. Canal and Washington Sts., Chicago, Ill. S. W. Card & Co., Mansfield, Mass., are putting on the market a new line of stocks and dies. with their patent adjustab,e dies and guide. S. A. Smith, 23 S. Canal Street, Chicago, Ll., Western Agent. { 25" " Only Drill Press built on 32" ' Ko-rekt ' principles, 37" Even if they come from Jersey." 42'' Gould & Eberhardt, New Ark. N. J.
--------

ment, the BROWN & SHARPE M'F.G. Co. has made many new varieties of Milling Cutters, and in order to supply the wants of customers, has found it necessary to greatly increase the number carried in stock. The Involute Gear Cutters in stock are from 3 to 48 pitch, 8 cutters to each pitch The Epicycloidal are from 2 to 10 pitch, 24 to e ac g


•

.

&&&&&&&&& 16 &&&&&&&&&& &&&&&&&&&&&&&&&&&&&&&&&&

g


Pg-11  AMERICAN-MACHINIST-Oct 3 1886 page 11 AMERICAN MACHINIST

AMERICAN MACHINIST DECEMBER 31, 1887 I3B ROWN AND SHARP MANUFACTURING_Call.MING PROVIDENCE, R. I., U. S. A. FINE MACHINERY, TOOLS OF PRECISION. THE PRATT & WHITNEY CO., Manufacture LATHES of Various Sizes AND OF THE FOLLOWING RINDS Hand, Engine for Turning and Screw Cutting, Cutting 011, Gap Bed, Pulley Turning and Boring, Turret-Head Engine and Chucking, Hand Wheel, him Turning, Spinning, Grinding, Pattern Making, &c. re- PRICE LIST AND DISCOUNT SHEET SENT UPON APPLICATION. INVOLUTE GEAR CUTTER. SIDE MILLING CUTTER. FORMED CUTThil Coincident with the rapid and wide extension of the use of Milling Machines, has come an increased demand for Milling Cutters. Without good cutters, the efficiency of Milling Machines is much abridged. In extending the product of its Milling Department, the BROWN & SHARPE M'F.G. Co. has made many new varieties of Milling Cutters, and in order to supply the wants of customers, has found it necessary to greatly increase the number carried in stock. The Involute Gear Cutters in stock are from 3 to 48 pitch, 8 cutters to each pitch The Epicycloidal are from 2 to 10 pitch, 24 to each pitch. The nirves of gear cutters are obtained by machinery. Side h Cutters, from 3 1-2" to 8' diameter, are carried in stock On work having parallel surfaces, these cutters may be used in pairs Formed Cutters, for cutting various outlines, are made to order. These, as also th3 Gear Cutters, can be sharpened without changing their original form- a feature appreciated by those producing work, in duplicate. By.making cutters in large numbers, with expensive special tools, much greater accuracy has been attained than can be reached by the usual methods of manufacture. Users of cutters will generally find it more economical and satisfactory to purchase from experienced makers, rather than to attempt to manufacture for themselves. Catalogues mailed on application. All kinds of cutters made to order. SPECIAL PTLICY MACHINERY 36, 50 & 60 in. Swing. THE BILLINGS 86 SPENCER COMPANY, HARTFORD. CONN., MANUFACTURERS OF Billings' Improved Combination Pliers, Drop Forged from Tool Steel. DROPFORCINCS' Copnpleort,olrrsoannodrateneel,a-TorrsE'lectric Guns, Pistols, Sewing Machines, MACHINISTS' TOOLS AND Machinery Generally. Send for Illustrated Catalogue. WARNER & SWASEY, "MAN' moms NILES TOOL WORKS, Hamilton, 0. Chicago, March 19th, 1883. Gentlemen :—We have been using continuously for the past two years the FIFTY-INCH PULLEY MACHINES purchased of you, and they have not cost us a cent in the way of re pairs. We have turned out as high as 19 pulleys ranging from) to 28 inches in diameter and from 6 to 8 inches lace in 10 hours. Have turned 8 pulleys 48"x 8 inches in 10 hours. The manufacture of pulleys comprises quite a large part of our business, and we looked over the field considerably before purchasing of you, and this, with two years' experience, enables us to say we think them THE BEST PULLEY MACHINES in the market. W. McCRECOR & CO Very truly yours, For IRON and BRASS WORK. Illustrated Catalogue on application.

&&&&&&&&& 16 &&&&&&&&&& &&&&&&&&&&&&&&&&&&&&&&&&

**********************************************17-18*********************************************************************

************************************************************************************************

2nd scan AMERICAN-MACHINIST-1889-page 6

Buying-A M E R I C A N M A C H I N I S T-Section Vol. 56, No. 1
Cut Production Costs-With Modern Equipment.


LET'S START RIGHT NOW
to do those things necessary to bring conditions back to normal. We've faced business stag- nation long enough
now to know what it means; so /et's go- let's get started on the right track again. This business de- pression will last
just as long as the people of this co\untry sit back and wait for something to happen-we've got to make things
happen.
We can accomplish nothing by waiting for the other fellow to start something-the chances are he is sitting back
waiting for us. We've simply got to realize that it is up to everyone to do his share, and there never was a better
time than right now to start the "ball a'rolling."
Then there is another and probably a much more threaten- ing angle to the situation. The period of prosperity just
passed has witnessed a tremendous over-expansion in practically every industry, not only in this country, but
throughout the entire civilized world. `As a consequence, today, and likely for many years to come, the facilities for
production will be greater than the powers of absorption-which means the keenest kind of competition and the
weeding out of the less stable and less progressive concerns in each industry. Business houses today are fighting
for their very existence, and those who survive will be the ones that start now to reduce their costs and better
their methods, in order to meet the keenest competition on a fair basis. ~
How should we begin? Where should we start?


If every manufacturer in the metal working industry would start by putting his own house in order, by replacing his
old worn'-out tools with new and better machines, by weeding out bis obsolete equipment, and installing more
modern, more prohtable equipment in its place, the first thing you know, we would have better business, things
would begin to move again, and industry once more would "hit the trail" of progress. We, The American Tool Works
Company, have already started. Since Jan. 1921, we have weeded out of our own plant, eighty-three machines of
different kinds, and are now replacing them with the latest and most modern tools. By this we have provided
business for the foundries, orders for the steel mills, and work for a number of men-in other words, we have "gone
into action" in our own plant.
If you will do the same in yours, the other fellow the same in his, and so on, ad infinitum, this country would soon
forget that there was a business depression, a readjustment period or a deflation spasm. It is up to every one of us
to put our shoulder to the wheel, so let's go-a slang expression -yes-but chuck full of meaning and good advice.

The American Tool Works Co.
Cincinatti, Ohio, U. S. A.
LATHES PLANERS--SHAPERS RADIALS

This is the 6rst of a series of cost reducing advertisements. The president of every metal Fabricatz.ng plant in t
country should hz.mselF read each and every one oF th advertisements, and then refer them to hz.s manager c
superintendent.
